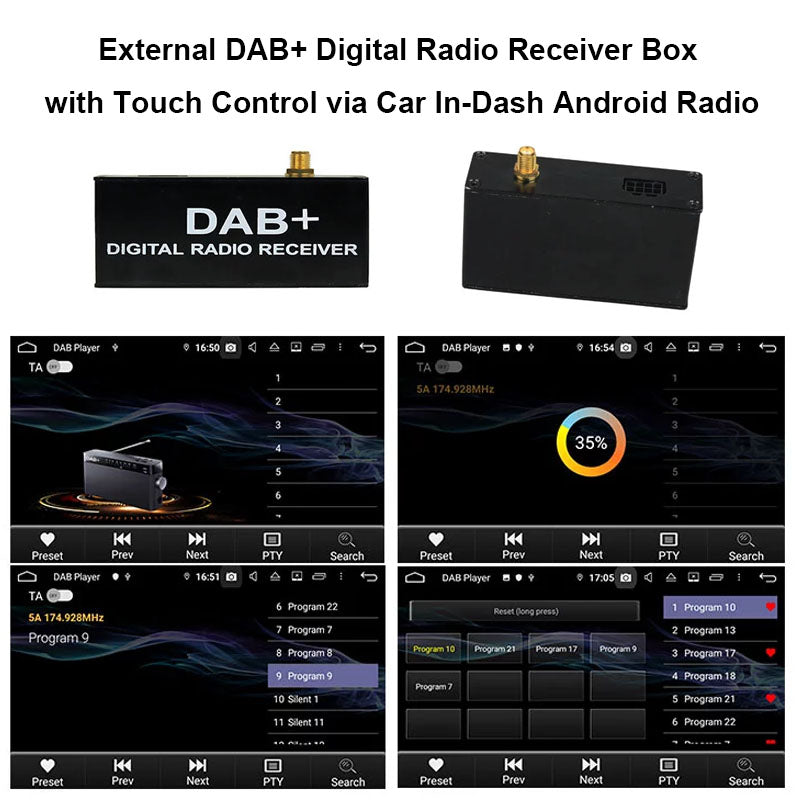

External DAB+ Digital Radio Box Receiver
The new radio standard DAB: Digital Audio Broadcasting allows you multi-regional music with your local well-known and also new channels. CD sound quality and noise-free in excellent transmission make DAB Radio a special experience in the vehicle. Permanent increase in channels and expansion of the station area soon make DAB accessible to most of Europe.
Specification:
Working Voltage: 5V
Operating Temperature Range: -20 to 70
Storage Temperature Range: -40 to 80
Signal to Noise RF=72dBM: Mini 50dB
Distortion at Ref out RF=72dBM: Mini 1%
Channel Separation RF=-72dBM at 1KHZ: Mini 50dB
DAB Frequency Table
Band III
5A 174.928 MHz 7D 194.064 MHz 10C 213.360 MHz 13B 232.496 MHz
5B 176.640 MHz 8A 195.936 MHz 10D 215.072 MHz 13C 234.208 MHz
5C 178.352 MHz 8B 197.648 MHz 11A 216.928 MHz 13D 235.776 MHz
5D 180.064 MHz 8C 199.360 MHz 11B 218.640 MHz 13E 237.488 MHz
6A 181.936MHz 8D 201.072 MHz 11C 220.352 MHz 13F 239.200 MHz
6B 183.648 MHz 9A 202.928 MHz 11D 222.064 MHz
6C 185.360 MHz 9B 204.640 MHz 12A 223.936 MHz
6D 187.072 MHz 9C 206.352 MHz 12B 225.648 MHz
7A 188.928 MHz 9D 208.064 MHz 12C 227.360 MHz
7B 190.640 MHz 10A 209.936 MHz 12D 229.072 MHz
7C 192.352 MHz 10B 211.648 MHz 13A 230.784 MHz
