Item No.: KB804CLS

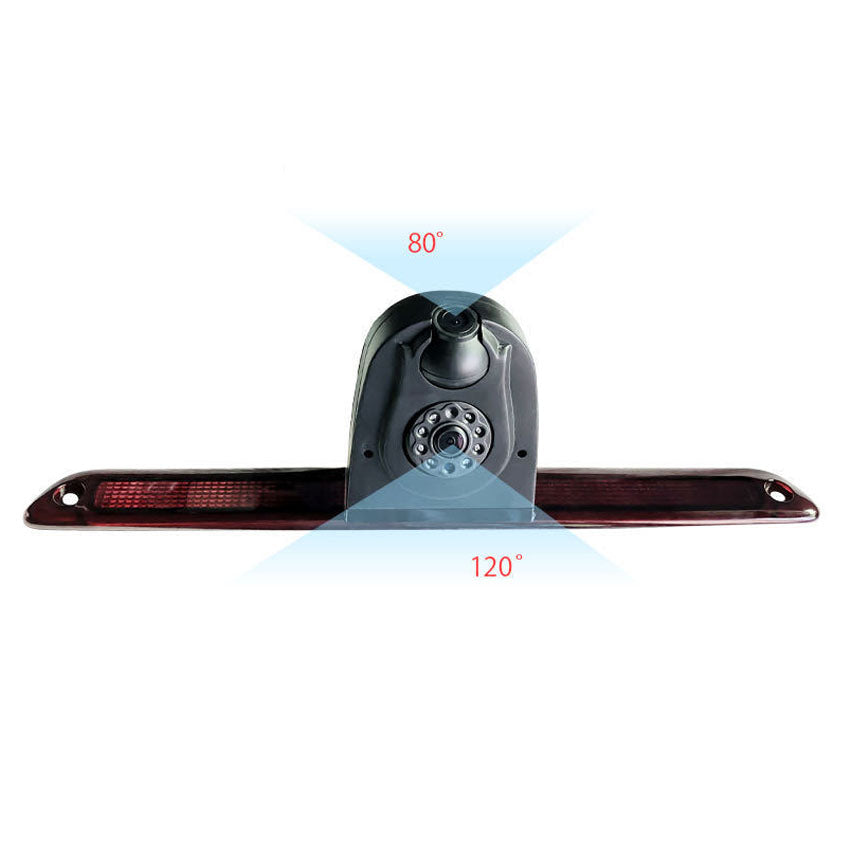

Dual Lens Brake Light Camera for Mercedes Sprinter / VW Crafter (2007-2019)
Product Highlights:
Dual cameras - perfect for viewing traffic and vehicle bumper
130°Ultra-wide all encompassing view
8 Infra-Red (IR) LED lights excellent night vision
IP68 Completely waterproof camera
Unique design allows to have one mounting with 2 cameras and different viewpoints
Driving camera show stream rear of the vehicle when in motion
Parking camera automatically switches to work when put into reverse
Technical Specifications:
1, Upper camera – driving viewpoint:
Image Sensor: 1/3” Super CMD2399
Effective Pixels: 976(H)*592(V)
TV Lines: 700TV Lines
TV System: NTSC/PAL
Lens: 1.9mm
Minimum Illumination: 0.1 Lux.
Waterproof Rate: IP68
View angle: V/65°H/80°D/105°
Camera lens adjustable: 20°(up & down)
Power voltage: 12V
Current consumption: 120mA
Operation Temperature: -20℃ - +70℃
Guideline: optional
2, Down camera – backup viewpoint
Image Sensor: 1/3” Super CMD2399
Effective Pixels: 976(H)*592(V)
TV Lines: 700TV Lines
TV System: NTSC/PAL
Lens: 1.9mm
Minimum Illumination: 0 Lux. (LED on)
IR LED: 8pcs
Night Vision Distance: 30ft
Waterproof Rate: IP68
View angle: V/90°H/120°D/170°
Camera lens adjustable: 120°(up & down)
Power voltage: 12V
Current consumption: 150mA
Operation Temperature: -20℃ - +70℃
Connector: RCA / 4 Pin
Guideline: optional
Microphone: optional
