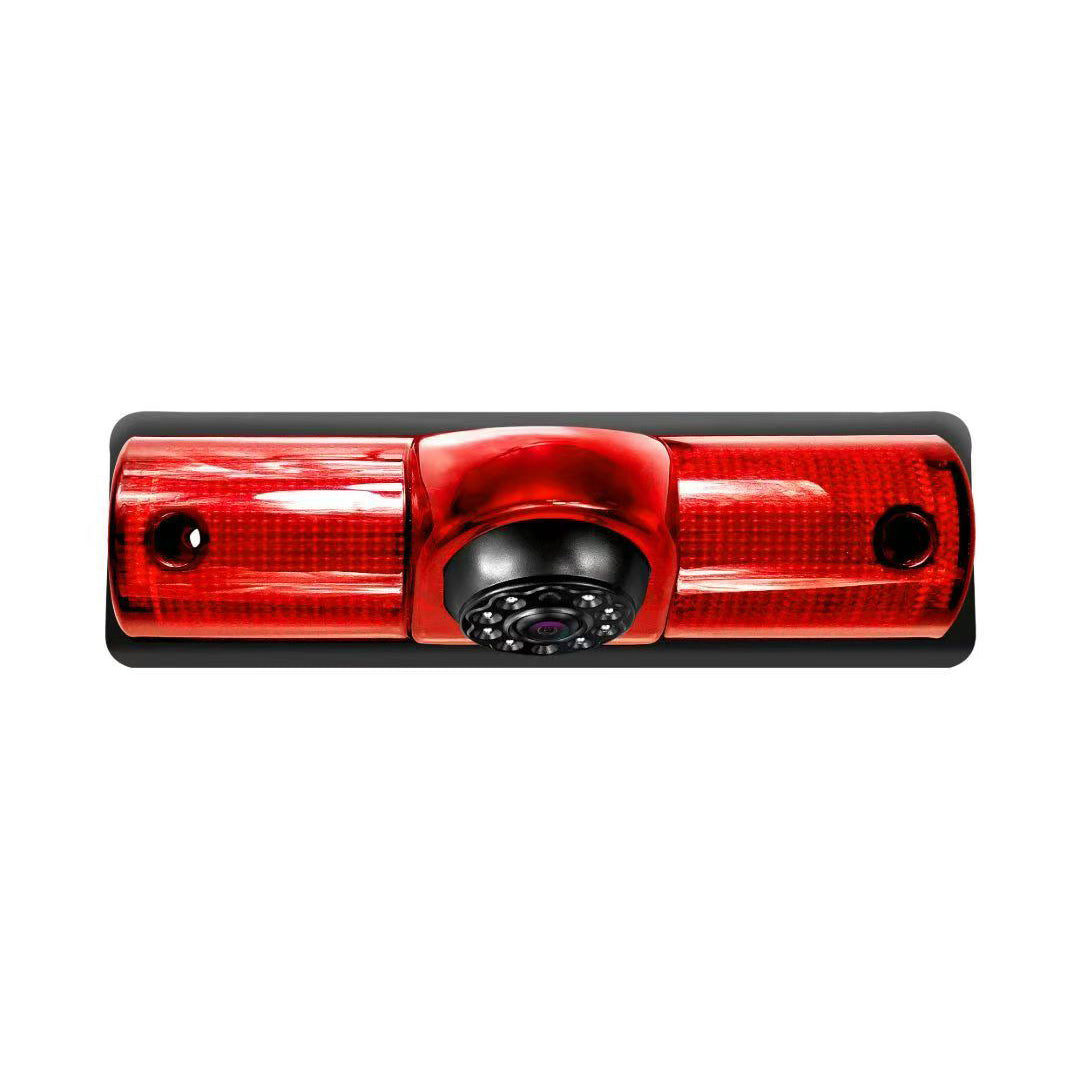

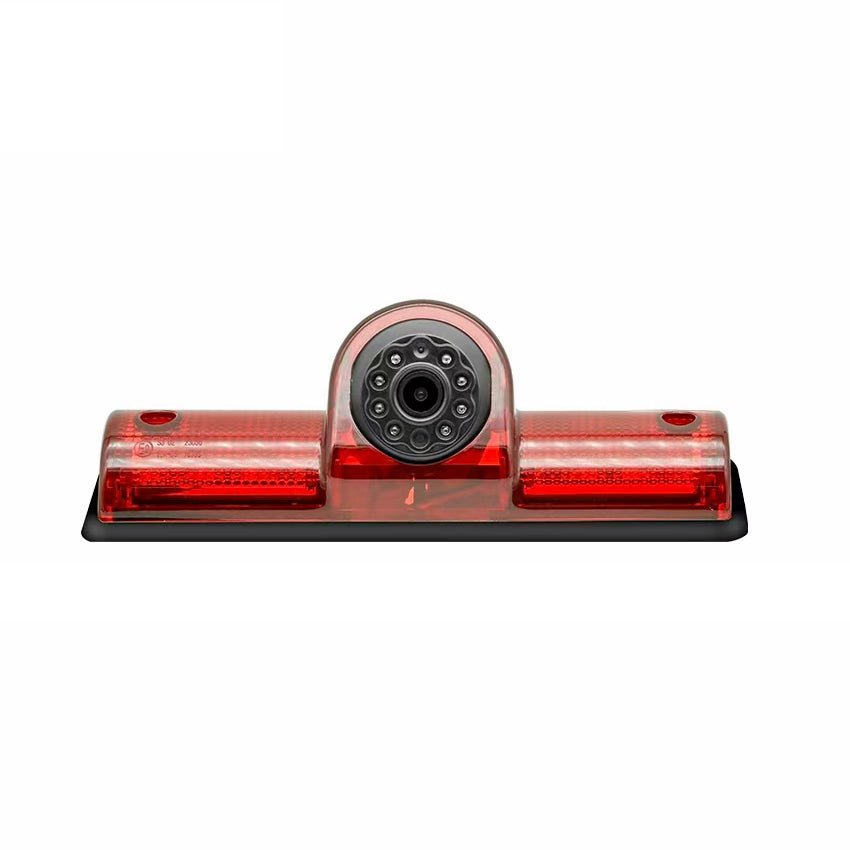

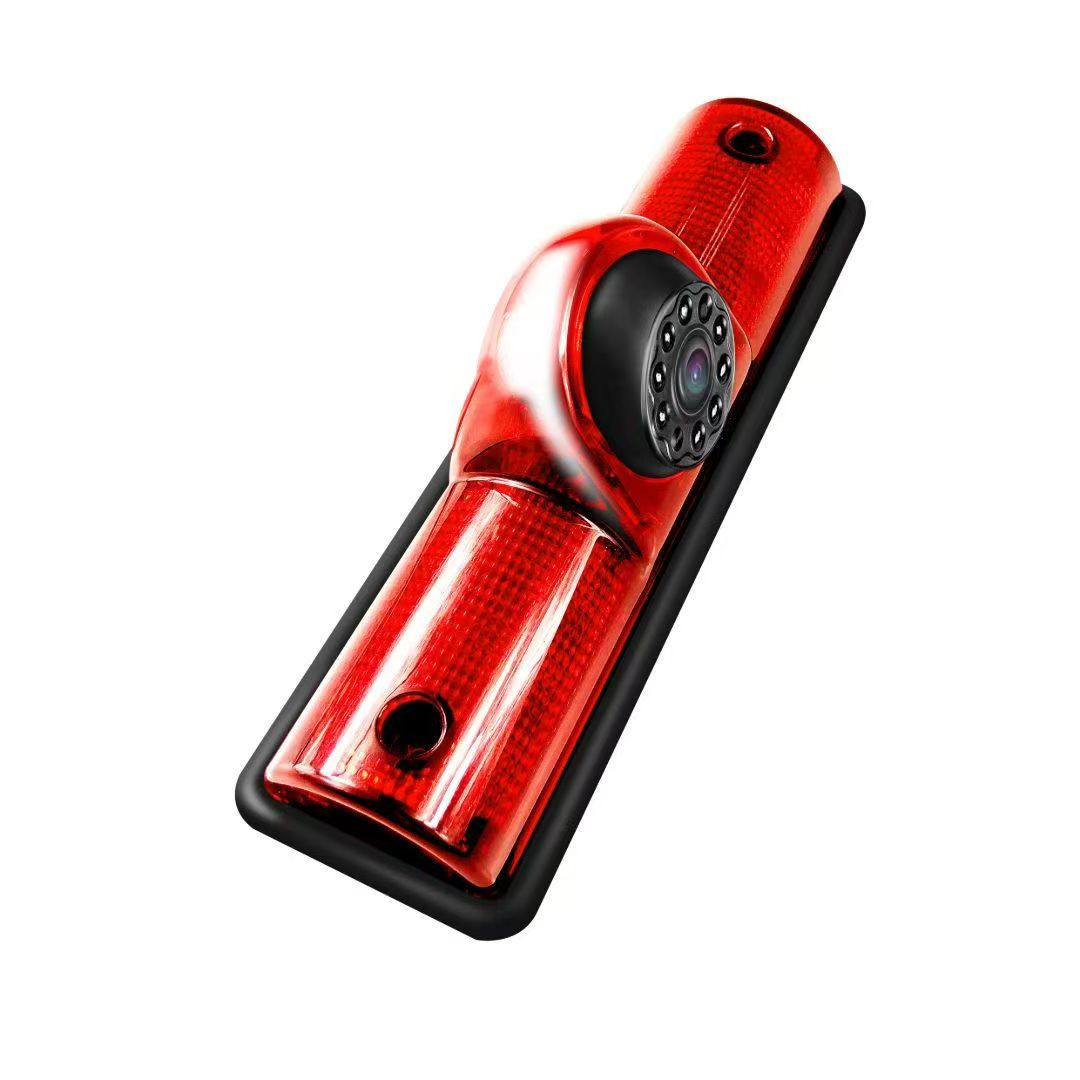

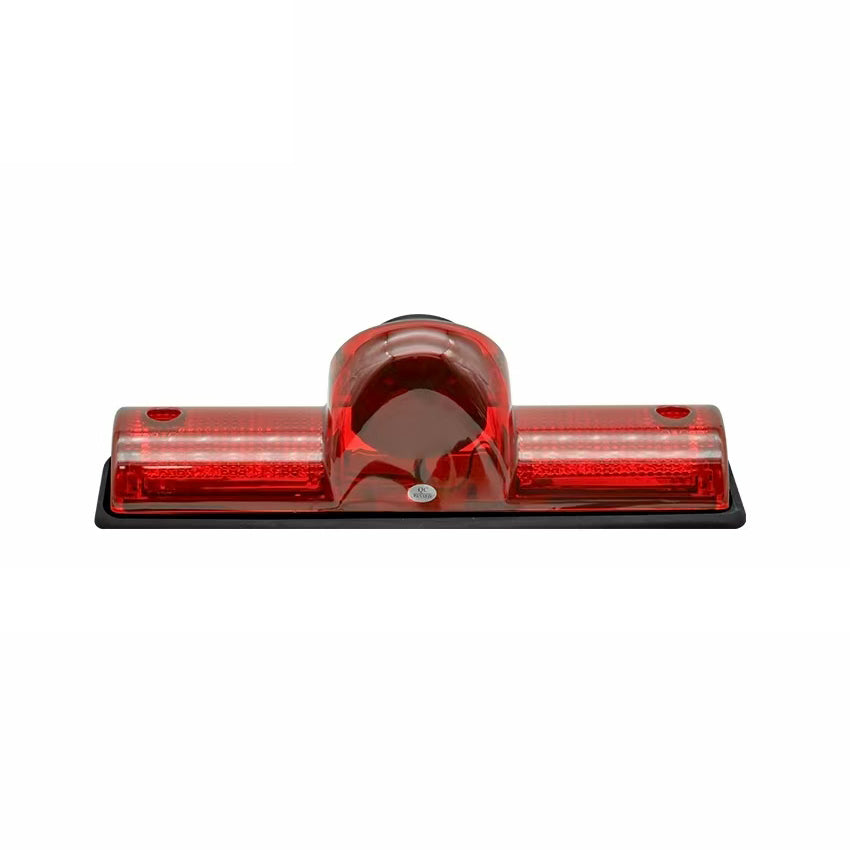

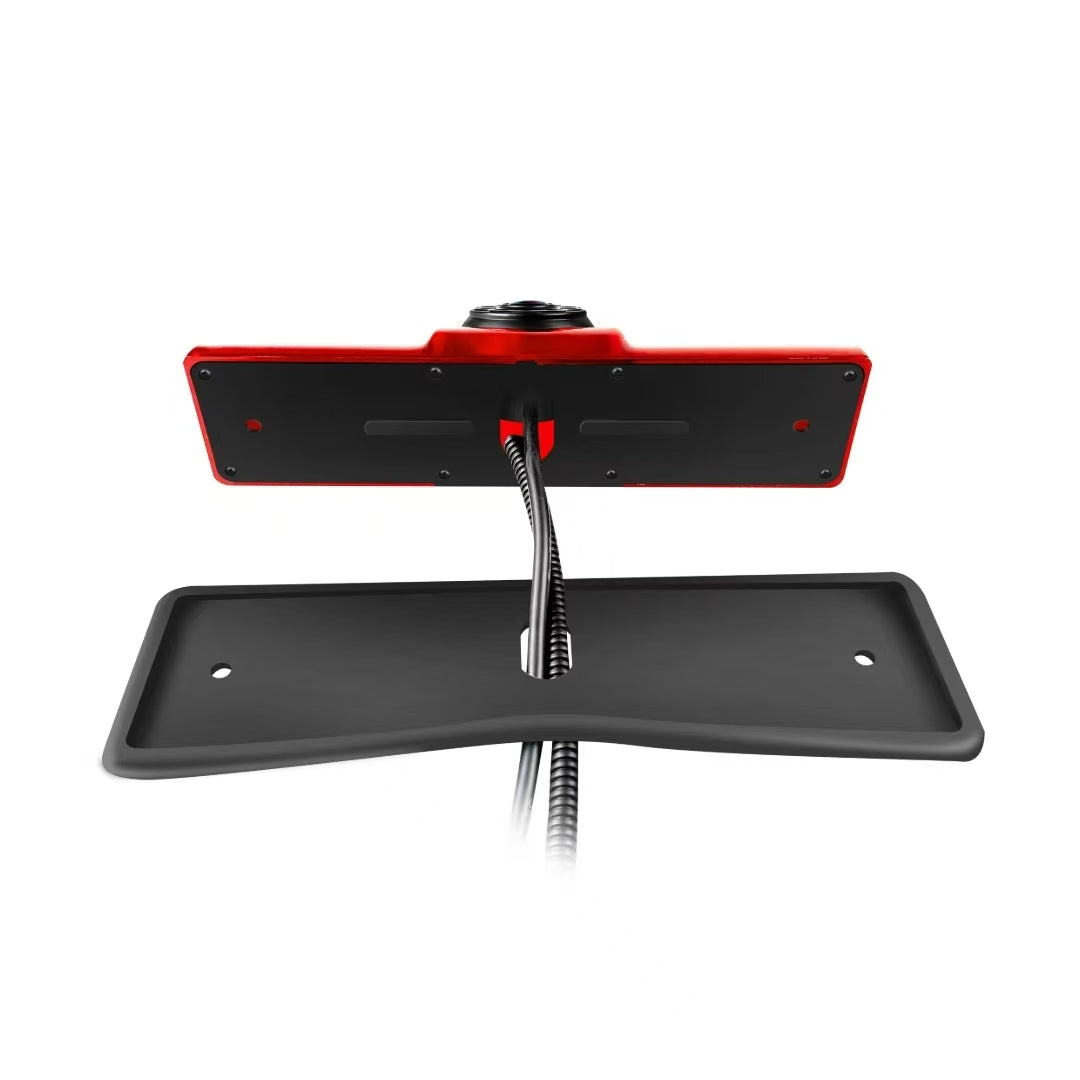

Universal Cargo Van Brake Light Camera

Item Number: KB-802
Technical Specifications:
Sensor: 1/2.7 FH8536H + C2399
Effective Pixels:
-CVBS: 1920(H) * 530(V)
-AHD-1080P: 1920(H) * 1080(V)
-AHD-720P: 1280(H) * 720(V)
Resolution: 1000-2000 TVL
TV System: NTSC / PAL
Video Signal: CVBS / AHD
Wide Angle: Customizable
Min Illumination: 0 Lux (LED On)
IR LED: High Brightness LED
Night Vision Distance: 30ft
Function Options:
-Mirror / Non-Mirror
-Guide Line ON / Guide Line OFF
-Flip / No Flip
Waterproof Rating: IP68
Current Consumption: 150mA
Power Supply: 12V standard, compatible with 5V-18V

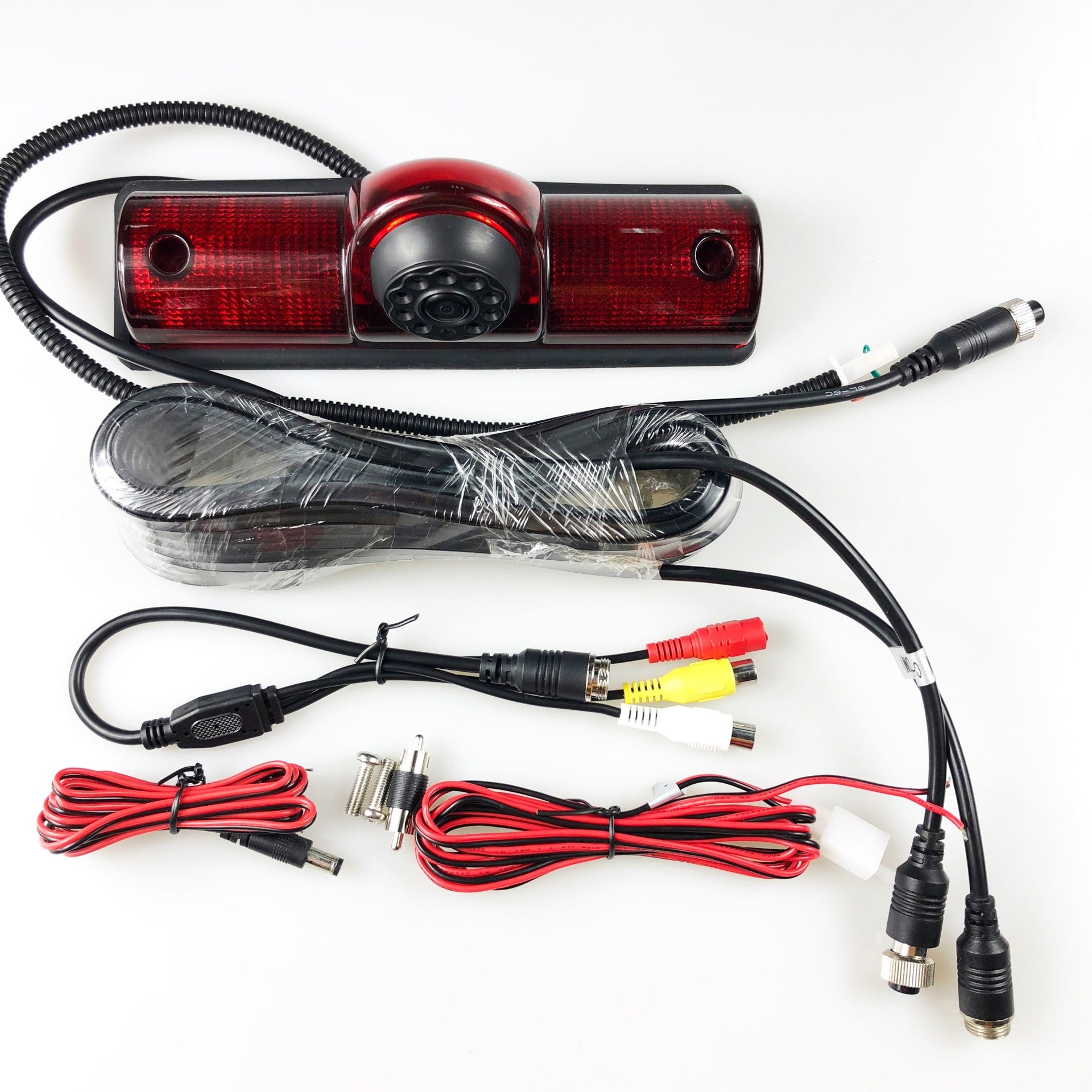

Connector: 4P Aviation Female (Optional AV+DC or BMW connector)
Operating Temperature: -30℃ to +75℃, Rh95% MAX
Storage Temperature: -40℃ to +85℃, Rh95% MAX
Material: PC plastic, high and low temperature resistance, flame retardant
Packaging: 10pcs/CTN, 45*45*31cm/CTN
After-Sales Service: 24-month warranty for manufacturing defects, excluding misuse or force majeure
